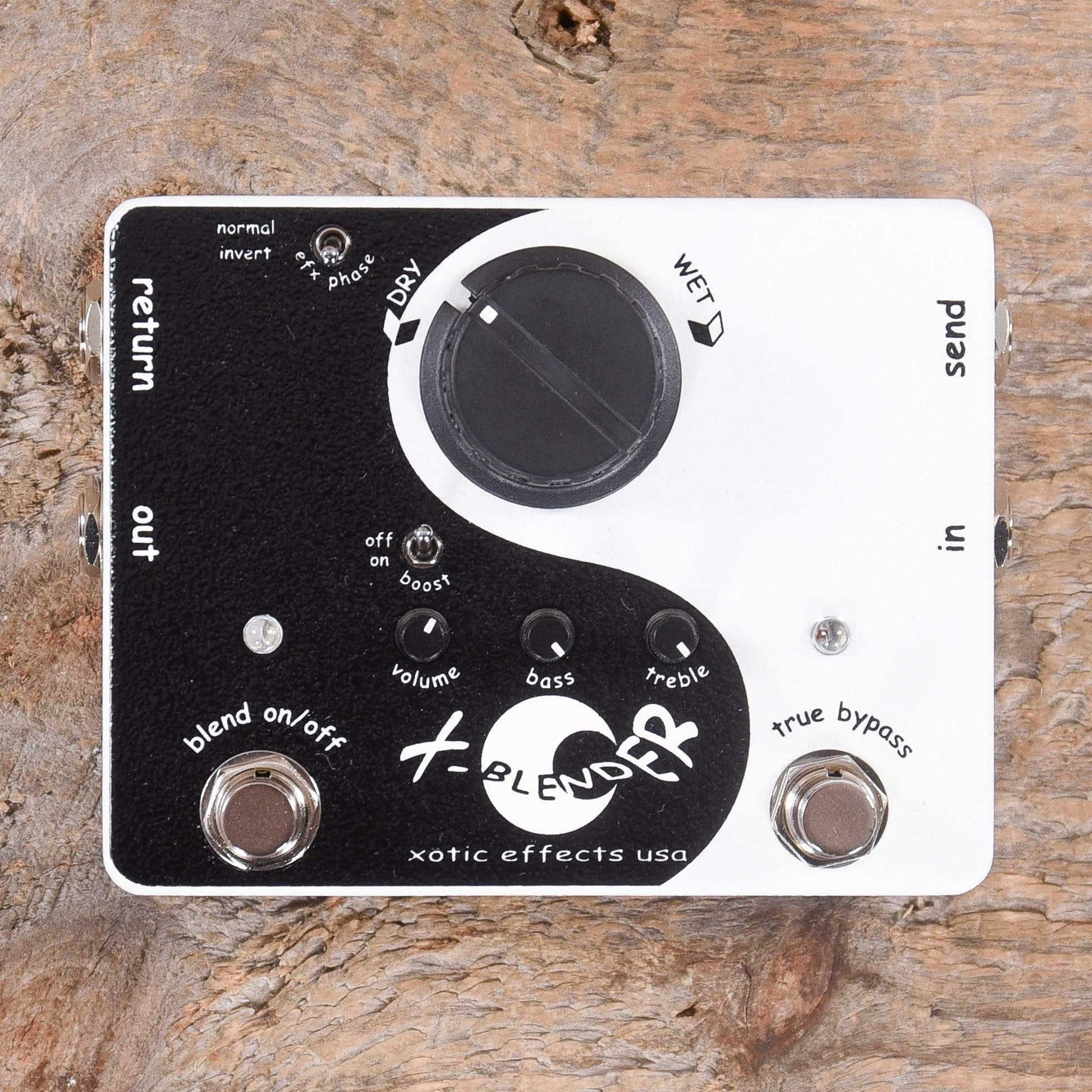

true bypass pedal Xotic X-Blender True-Bypass Effects Loop Pedal

true bypass pedal Xotic X-Blender True-Bypass Effects Loop PedalPlease Note: Minor paint chip towards the bottom. TheXotic X Blender true bypass guitar effects loop pedal incorporates pro audio engineering technology to solve the sonic imperfection some effects produce and was designed to be completely transparent. You'll be amazed by the clarity of the sound! The X Blender pedal is a unique tool for the modern guitar bass player. It's a switch able series parallel loop unit. A parallel effects loop allows you to

TheXotic X-Blender true bypass guitar effects loop pedal incorporates pro-audio engineering technology to solve the sonic imperfection some effects produce and was designed to be completely transparent. You'll be amazed by the clarity of the sound!

The X-Blender pedal is a unique tool for the modern guitar / bass player. It's a switch-able series-parallel loop unit. A parallel effects loop allows you to mix or blend the effects with a dry signal (unaffected signal), creating a far more complex tone from your guitar.

Settings:
For Series Mode activation (Figure 1), connect the send jack to the input of the effect. Connect the output jack of the effect with the return jack on the X-Blender. The series loop is active when the red LED bypass switch is lit and the blue LED blend switch is off. In the series mode, all the controls are disabled. The input signal and the output signal are not buffered in this mode.

For Parallel Mode activation (Figure 2), the device is connected the same way as Figure 1 but the blend on/off is switched on. This switch activates the DRY / WET Mix knob which controls the mixture of the DRY signal (unaffected signal) and the effect signal.  As you turn the mix knob to the left, you get more DRY signal. Turn the knob to the right, you have more WET signal. This mode is very handy when your effect device thins out the bass or drops the volume. You can reinforce it with the DRY signal and / or adjust the 2 band EQ and the volume control to accommodate the effect signal.
